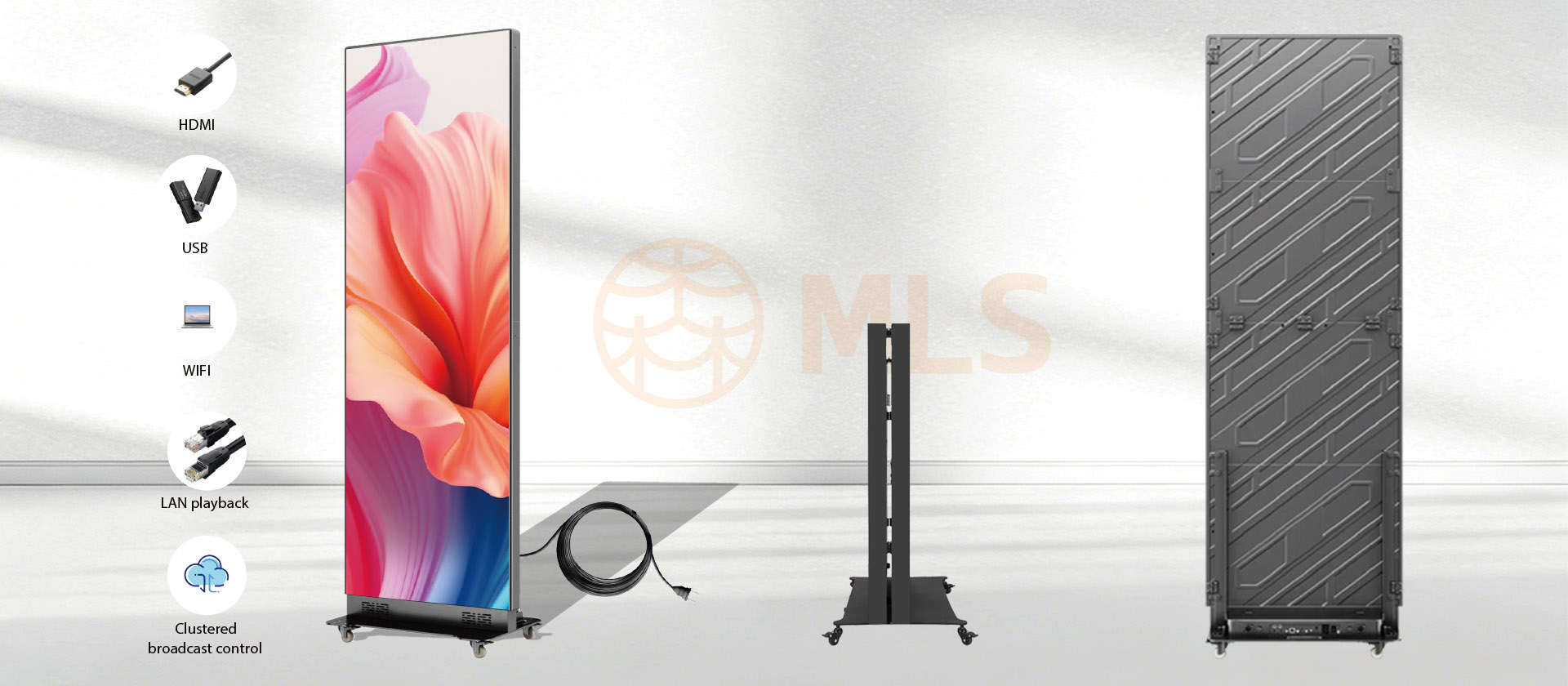

Poster Stand Screen

Poster Stand Screen

  • - Foldable /Movable
  • - System embedded/Plug to play
  • - Remote-controllable
  • - Interlinkable for bigger screen
Tag: Indoor LED Display    HD LED Screen    Small-pitch LED display    Conference LED display
Inquiry

Support Seamless Splicing Of Multiple Units

Offering exceptional versatility, this product can be deployed as a single display or seamlessly integrated with multiple units to create a exnansive video wall, This fexibility allows it to adapt to a diverse array of settings and reauirements

Ultra-Thin & Lightweight Design

Precision-Engineered dimensions for effortless portability: 62mm Thickness, 51kg Weight for sleek portability.

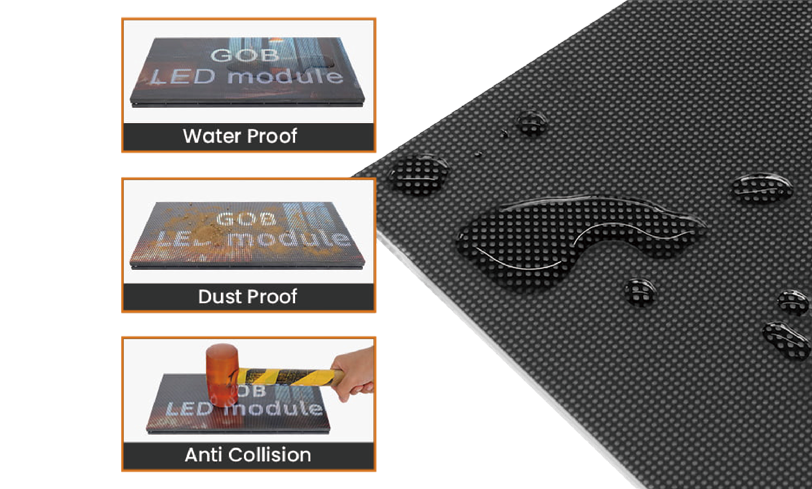

Water Proof
Dust Proof
Anti Collision

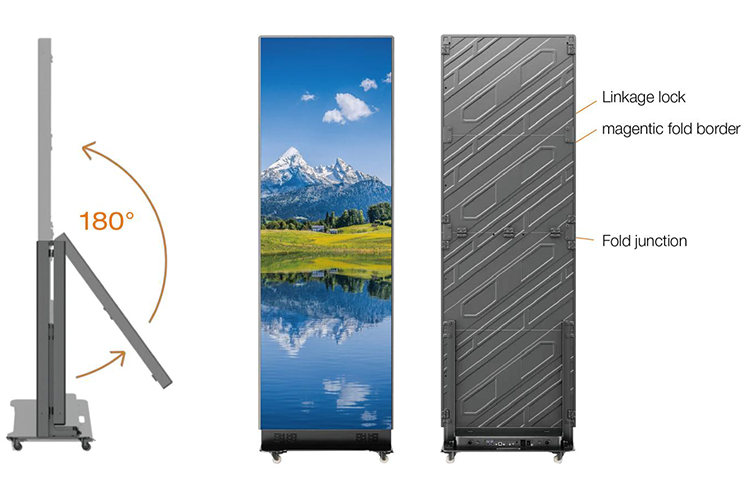

Foldable Design, Fast Splicing

Boasts a foldable design for streamlined transit, with its height measuring merely 1101mm in the folded state.

SPECIFICATION

Parameter P1.25 P1.53 P1.86 P2 P2.5
LED Type SMD1010 SMD1212 SMD1515 SMD1515 SMD2121
Pixel Pitch 1.25mm 1.53mm 1.86mm 2mm 2.5mm
Pixel Density 640000 dots/m² 422500 dots/m² 288900dots/m² 250000 dots/m² 160000 dots/m²
Poster Screen(W×H) 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
Module Resolution 256*128 dots 209*104 dots 172*86 dots 160*80 dots 128*64 dots
Module Weight 0.43 kg 0.43 kg 0.43 kg 0.43 kg 0.43 kg
Display Area Size(W×H) 640*1920mm 640*1920mm 640*1920mm 640*1920mm 640*1920mm
Per Unit Resolution 512*1536 dots 416*1248 dots 344*1032 dots 320*960 dots 256*768 dots
Product Weight 51kg 51 kg 51 kg 51 kg 51kg
Panel Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
Refresh Rate 3840-7680Hz 3840-7680Hz 3840-7680Hz 3840-7680Hz 3840-7680Hz
Brightness 500-800 cd/m² 500-800 cd/m² 500-800 cd/m² 500-800 cd/m² 500-800 cd/m²
Gray Scale 12-16Bit 12-16Bit 12-16Bit 12-16 Bit 12-16Bit
Color Temperature 3000~15000K 3000~15000K 3000~15000K 3000~15000K 3000~15000K
Viewing Angle (H/V) 160°/140° 160°/140° 160°/140° 160°/140° 160°/140°
Optimum Viewing Distance ≥1.8 m ≥2.3 m ≥2.8 m ≥2.8 m ≥3.8 m
Contrast Ratio 5000:1 5000:1 5000:1 5000:1 5000:1
Scan Mode 1/64 scan 1/52 scan 1/43 scan 1/40 scan 1/64scan
IP Rating IP30/IP65 IP30/IP65 IP30/IP65 IP30/IP65 IP30/IP65
Power Consumption (Max.) 550 W/m² 500 W/m² 500 W/m² 500 W/m² 500 W/m²
Power Consumption (Avg.) 275 W/m² 250 W/m² 250 W/m² 250 W/m² 275 W/m²
Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C
Operating Humidity 10% - 70% RH 10% - 70% RH 10% - 70% RH 10% - 70% RH 10% - 70% RH
Storage Temperature -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C
Storage Humidity 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH
Maintenance Front Front Front Front Front
LED Lifetime 100000 Hours 100000 Hours 100000 Hours 100000 Hours 100000 Hours

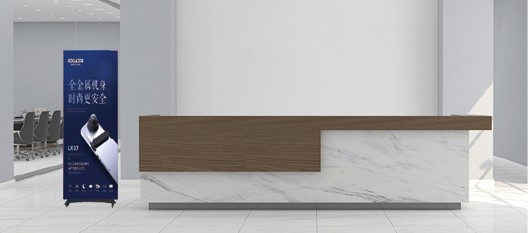

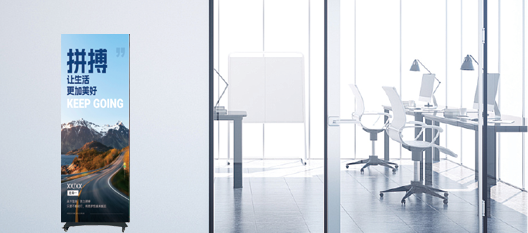

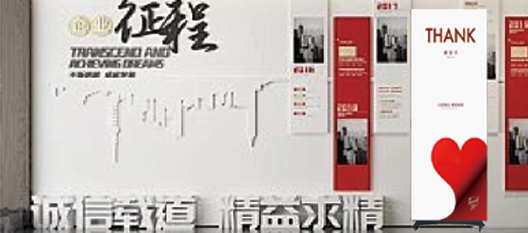

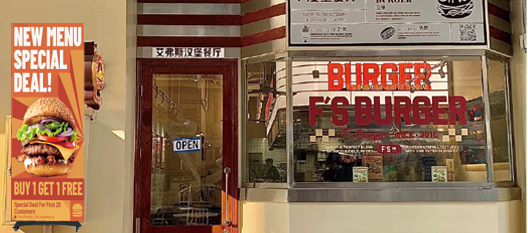

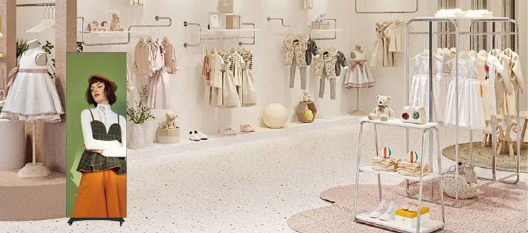

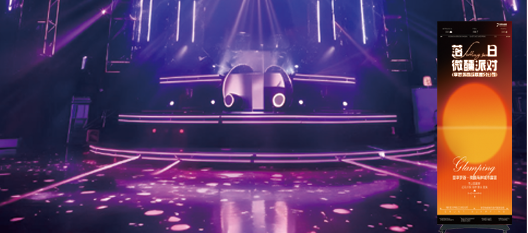

APPLICATION

CERTIFICATION

FCC
LVD
CE
PSE
ROHS
CCC
