Outdoor 丨 Die-Cast Aluminum Cabinet

  • -High IP Protection
  • - Precision Engineered
  • - Superior Heat Dissipation
  • - Front/Rear Maintenance
  • Tag: Outdoor LED Display
    Inquiry

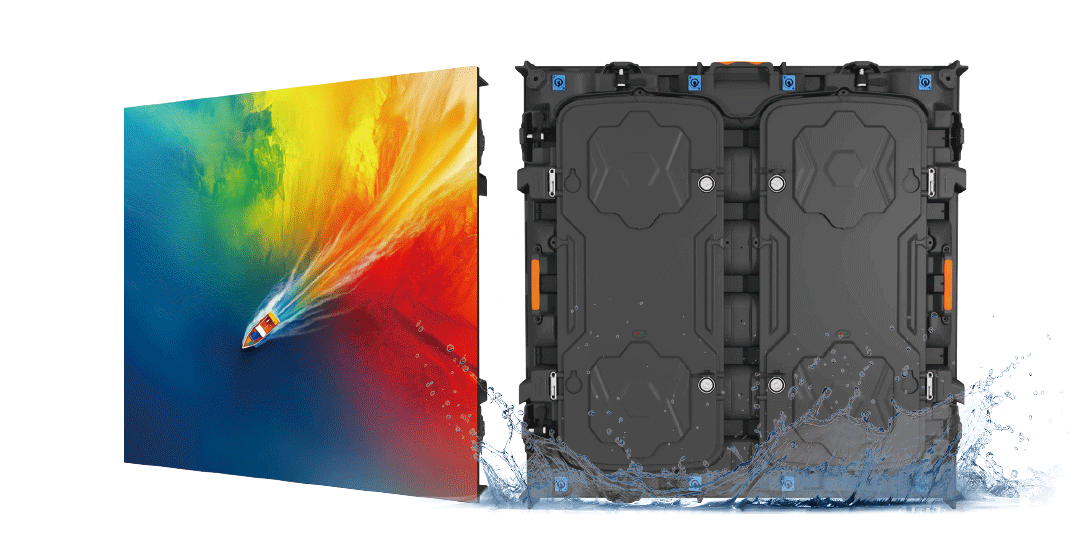

    Super strong protection, stable and reliable

    IP65 Waterproof for both front and back side, Fearless of extreme weather conditions.It has the advantages ofhigh temperature resistance, rainstorm resistance,high humidity resistance, low temperature resistance, etc.

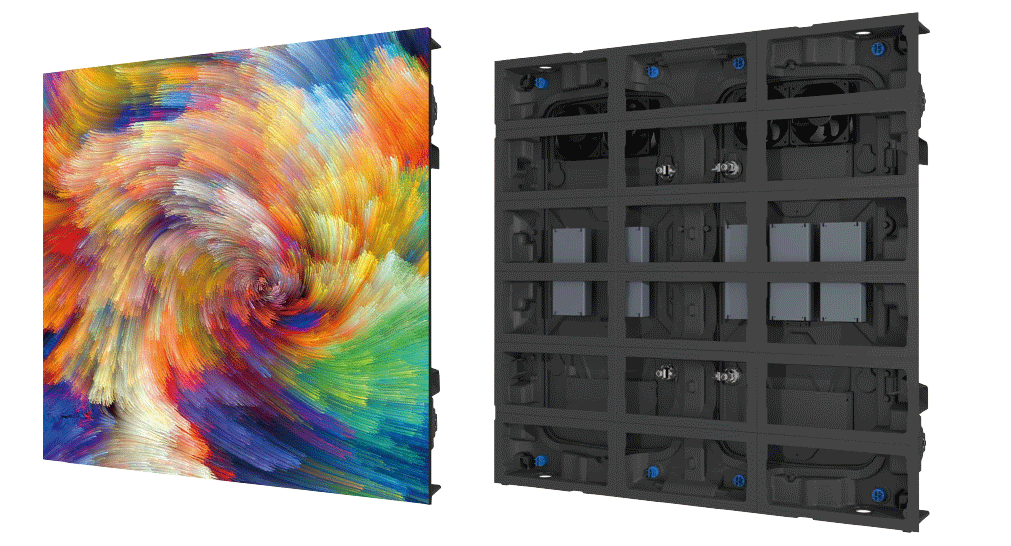

    Internal Structure

    IEquipped with 4 wing fans on the back cover for quick heat dissipation.

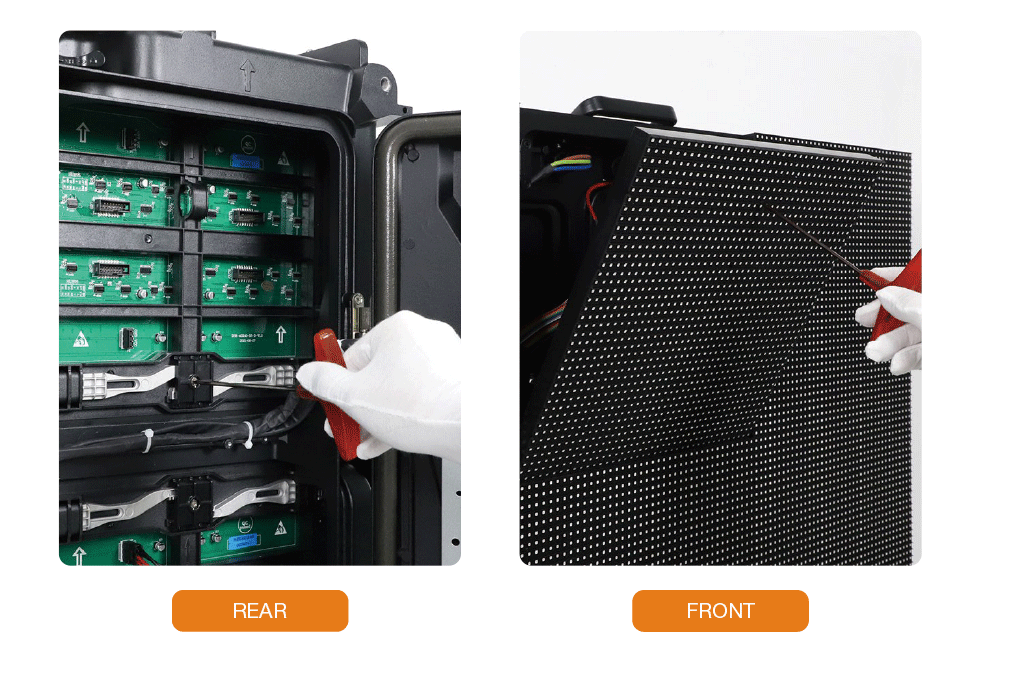

    Full-front and Rear maintenance

    Support front and back maintenance,convenient and fast. .

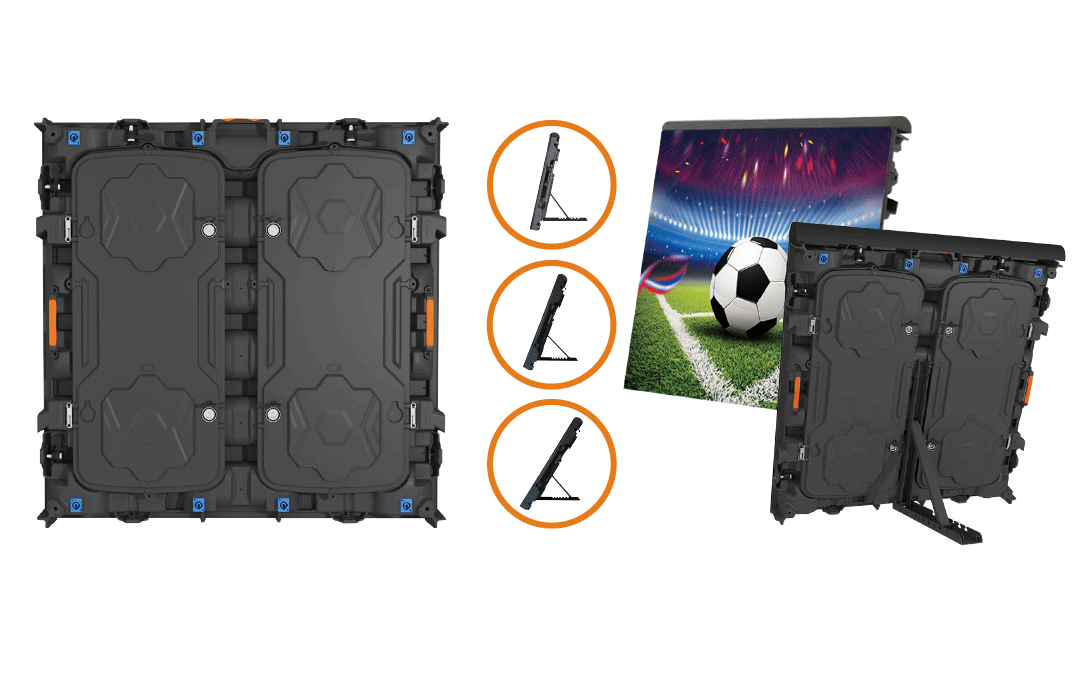

    One box with multiple uses

    Stadium Perimeter LED Display bracket support multi angle(-90) adjustment according to football stadiumactual site.

    SPECIFICATION

    Parameter P2 P2.5 P3 P4 P5
    LED Type SMD1212 SMD1415 SMD1415 SMD1921 SMD1921
    Pixel Pitch 2mm 2.5mm 3mm 4mm 5mm
    Pixel Density

    250000 dots/m²

    160000 dots/m²

    105625 dots/m²

    62500 dots/m²

    40000 dots/m²

    Module Dimension(W×H) 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
    Module Resolution 160*180 dots 128*64 dots 104*52 dots 80*40 dots 64*32 dots
    Module Weight 0.46kg 0.46kg 0.46kg 0.46kg 0.46kg
    Cabinet Dimension(W×H) 960*960mm 960*960mm 960*960mm 960*960mm 960*960mm
    Cabinet Resolution 480*480 dots 384*384 dots 320*320 dots 240*240 dots 192*192 dots
    Cabinet Weight 25kg 25kg 25kg 25kg 25kg
    Panel Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
    Refresh Rate 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz
    Brightness 4500-5000 cd/m² 4500-5000 cd/m² 4500-5000 cd/m² 4500-5000 cd/m² 4500-5000 cd/m²
    Gray Scale 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit
    Color Temperature 3000~15000K 3000~15000K 3000~15000K 3000~15000K 3000~15000K
    Viewing Angle (H/V) 160°/140° 160°/140° 160°/140° 160°/140° 160°/140°
    Scan Mode 1/20 scan 1/16 scan 1/13 scan 1/10 scan 1/8 scan
    Contrast Ratio 6000:1 6000:1 6000:1 6000:1 6000:1
    Power (Max.) 650 W/m² 650 W/m² 650 W/m² 650 W/m² 650 W/m²
    Power (Avg.) 220 W/m² 220 W/m² 220 W/m² 220 W/m² 220 W/m²
    Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
    Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C
    Operating Humidity 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH 10% - 90% RH
    Storage Temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
    Storage Humidity 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH
    Maintenance Rear Rear Rear Front&Rear Front&Rear
    LED Lifetime 100000 Hours 100000 Hours 100000 Hours 100000 Hours 100000 Hours

    APPLICATION

    CERTIFICATION

    FCC
    LVD
    CE
    PSE
    ROHS
    CCC
