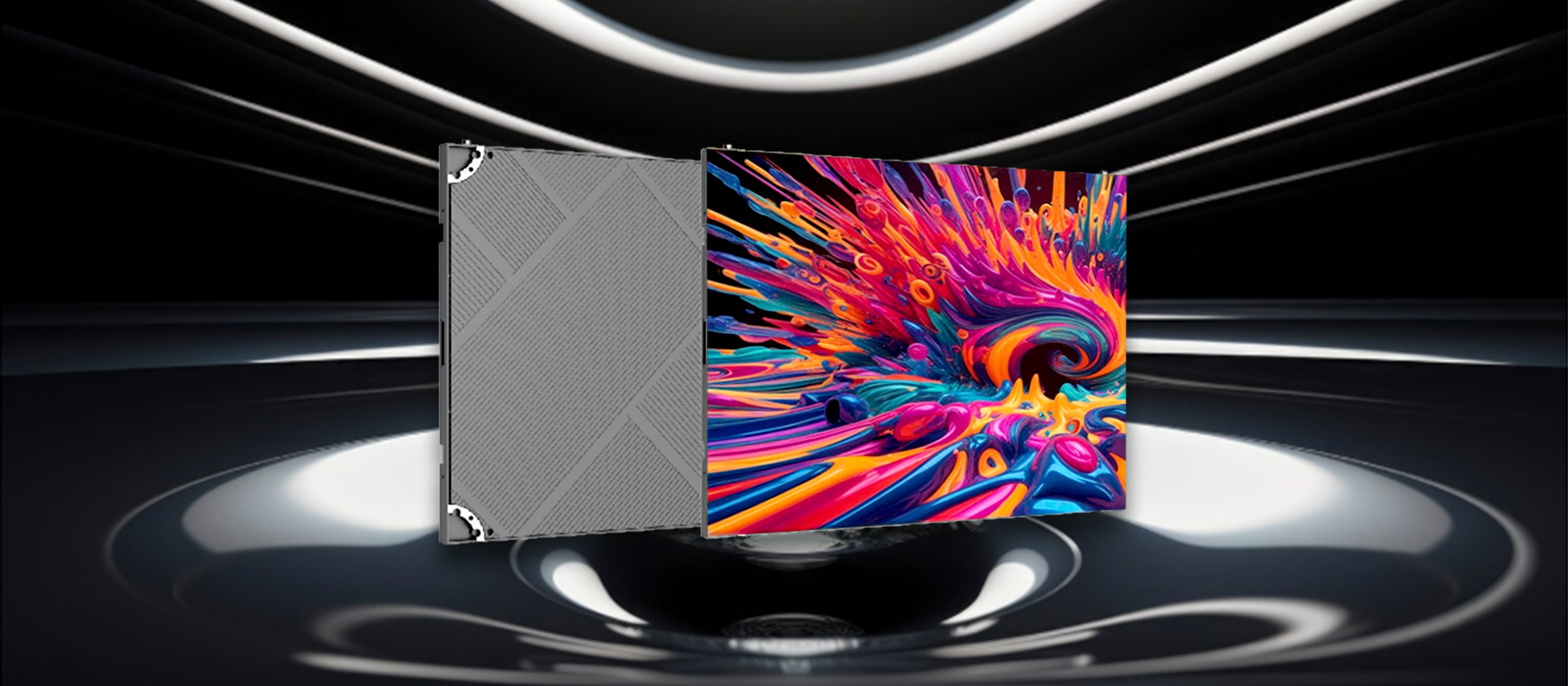

Indoor Wireless Connection LED Display
Indoor Wireless Connection LED Display
Indoor Wireless Connection LED Display

Indoor Wireless Connection LED Display

  • - Plastic back cover, enhancing flatness
  • - Wireless connection, quick installation
  • - Strong flame retardant performance and high stability
  • - Efficient maintenance and reduced maintenance costs
  • - High-definition and detailed display
Tag: Indoor LED Display    HD LED Screen    Small-pitch LED display    Conference LED display
Inquiry

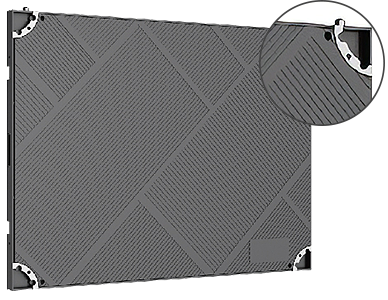

Plastic back cover, enhancing flatness

It significantly enhances the structural strength and flatness of the screen, ensuring that the large screen is less prone to deformation after installation. It is particularly suitable for scenarios with high flatness requirements

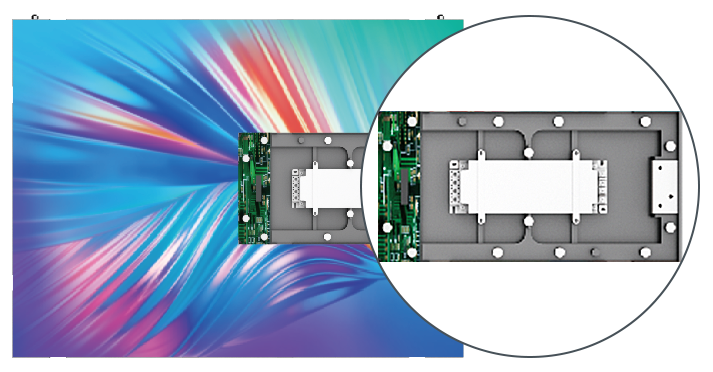

Wireless connection, quick installation

There is no need to connect external lines one by one. Just connect the interfaces of the modules or cabinets to complete the splicing, significantly reducing the installation time

Strong flame retardant performance and high stability

The material has strong flame retardancy and excellent weather resistance. It can withstand temperature changes and humidity fluctuations, avoid aging or cracking, and is suitable for all kinds of indoor environments

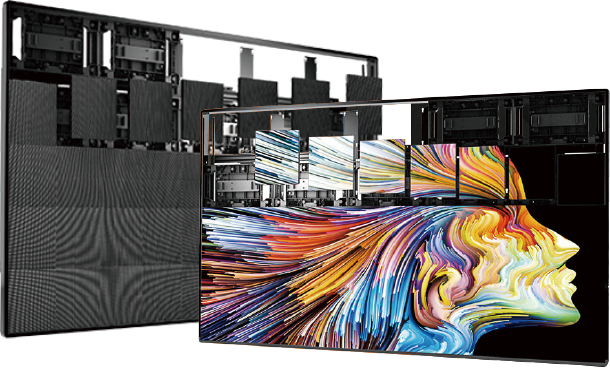

Efficient maintenance and reduced maintenance costs

Line integration reduces the number of fault points, enables quicker problem location, and lowers the difficulty and cost of after-sales maintenance

High-definition and detailed display

Adopting SMD packaging technology and high-precision pixel control, it features a small pitch and high refresh rate, ensuring no trailing in dynamic images, rich image layers, uniform colors, and excellent visual presentation effects

SPECIFICATION

Parameter P1.25 P1.53 P1.86 P2.5
LED Type SMD1010 SMD1212 SMD1515 SMD2121
Pixel Pitch 1.25mm 1.53mm 1.86mm 2.5mm
Pixel Density 640000 dots/m² 422500 dots/m² 288900 dots/m² 160000 dots/m²
Module Dimension(W×H×D) 320*160*14.5mm 320*160*14.5mm 320*160*14.5mm 320*160*14.5mm
Module Resolution 256*128 dots 204*104 dots 172*86 dots 128*64 dots
Module Weight 0.43 kg 0.43 kg 0.43 kg 0.43 kg
Cabinet Dimension(W×H×D) 640*480*28mm 640*480*28mm 640*480*28mm 640*480*28mm
Cabinet Resolution 512*384 dots 416*312 dots 344*258 dots 256*192 dots
Cabinet Weight 3.9 kg 3.9 kg 3.9 kg 3.9 kg
Panel Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Brightness 800 cd/m² 800 cd/m² 800 cd/m² 800 cd/m²
Gray Scale 14 Bit 14 Bit 14 Bit 14 Bit
Color Temperature 3000~15000K 3000~15000K 3000~15000K 3000~15000K
Viewing Angle (H/V) 160°/140° 160°/140° 160°/140° 160°/140°
Optimum Viewing Distance ≥1.8 m ≥2.3 m ≥2.8 m ≥3.8 m
Contrast Ratio 5000:1 5000:1 5000:1 5000:1
Scan Mode 1/64 scan 1/52 scan 1/43 scan 1/32 scan
IP Rating IP30 IP30 IP30 IP30
Power Consumption (Max.) 550 W/m² 500 W/m² 500 W/m² 500 W/m²
Power Consumption (Avg.) 275 W/m² 250 W/m² 250 W/m² 275 W/m²
Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C -10°C to 40°C
Operating Humidity 10% - 70% RH 10% - 70% RH 10% - 70% RH 10% - 70% RH
Storage Temperature -25°C to 50°C -25°C to 50°C -25°C to 50°C -25°C to 50°C
Storage Humidity 10% - 65% RH 10% - 65% RH 10% - 65% RH 10% - 65% RH
Maintenance Front Front Front Front
LED Lifetime 100000 Hours 100000 Hours 100000 Hours 100000 Hours

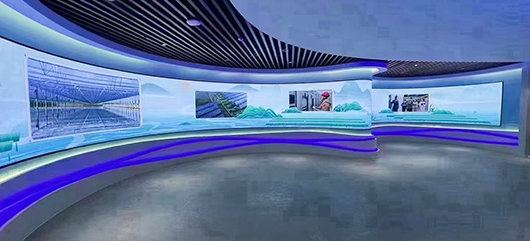

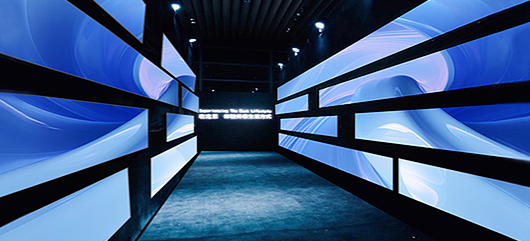

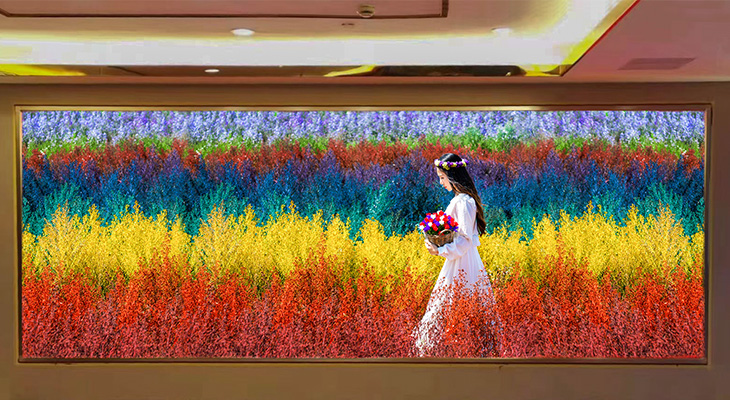

APPLICATION

CERTIFICATION

FCC
LVD
CE
PSE
ROHS
CCC
