Indoor 丨COB

  • - Ultra-fine pixel pitch
  • - High contrast ratio
  • - High reliability
  • - Energy-saving
  • - Eye-protective and waterproof
  • Tag: Indoor LED Display    HD LED Screen    Small-pitch LED display    Conference LED display
    Inquiry

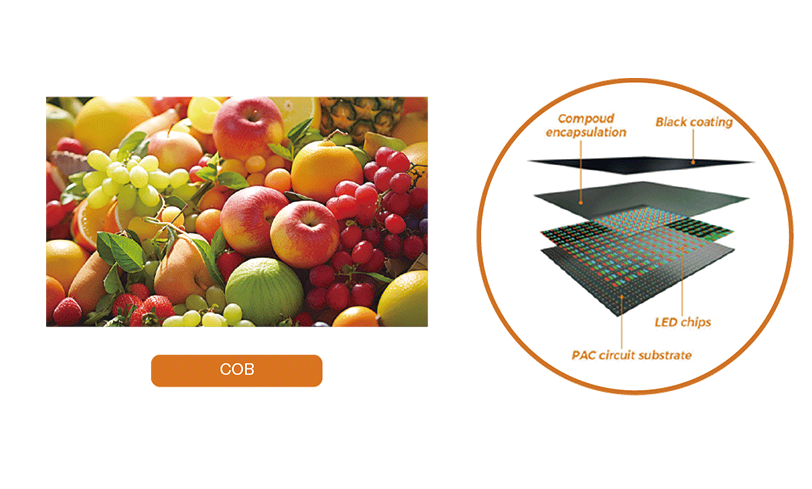

    Inverted Cob Technology

    COB packaging achieves better video optical performance through chip level packaging,resulting in more comfortableand soft image qualityNo significant pixel graininess, more suitable for "closer range", "indoor ambient light", "longerdurationApplications under conditions such as long-term viewing.

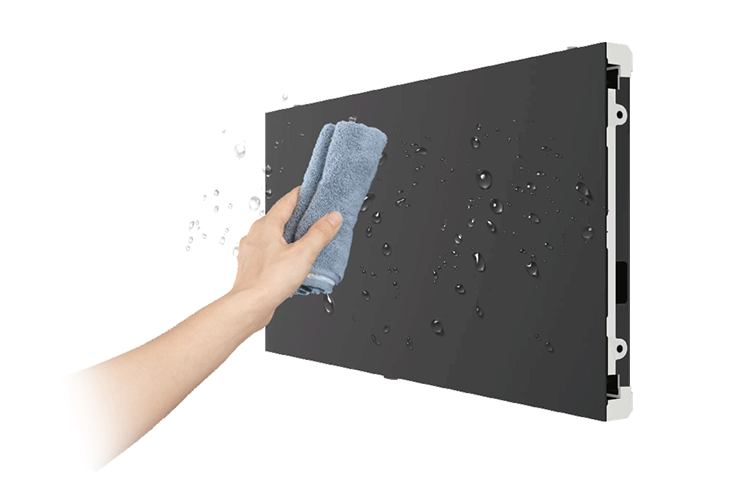

    Waterproof, dustproof, and impact resistant

    Due to the small spacing of conventional SlD small pitch displays, the display unit cannot be glued or installed with amask, exposing the LED on the outside, making the display waterproof, dustproof, and colision resistant obstacles fordust free crossing. Even during transportation, the light beads will be knocked off.
    The COB integrated packaging technology has completely overcome the dificulties that SMD cannot overcome withsmall spacing, truly achieving waterproofing, dust prevention, and impact resistance.

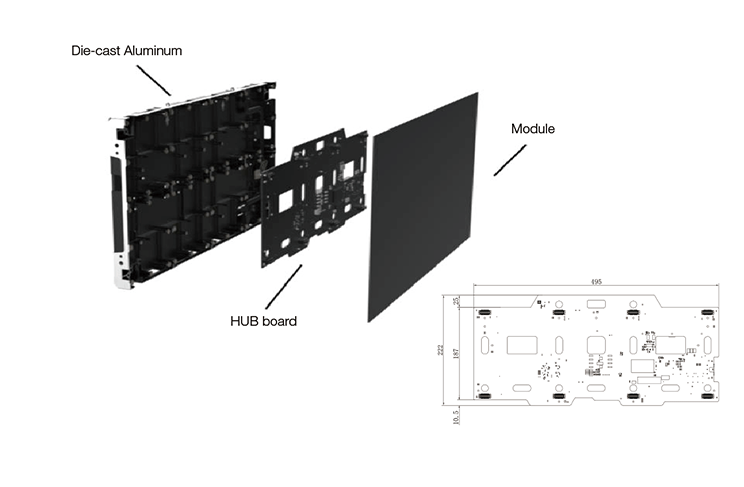

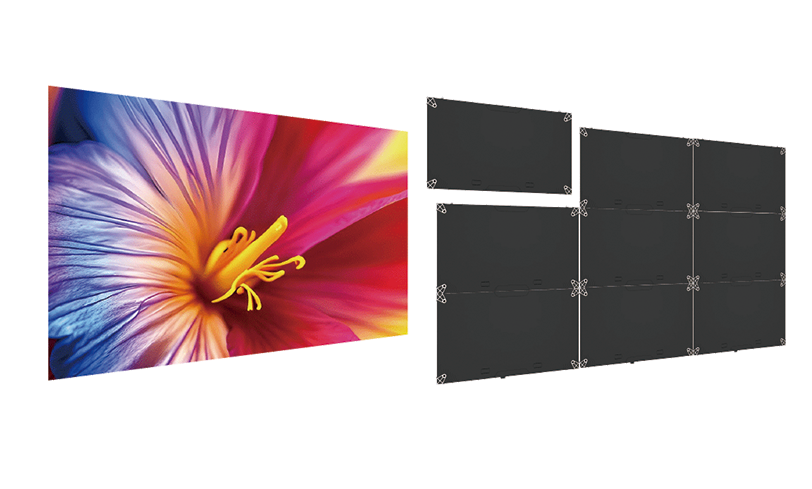

    Seamless Splicing

    Die-casting Alumium Cabinet sctructure with CNC high-precision processing (Flatness of Cabinets0.1mm)Screwless desian for faster and more secure installation Super silent fanless desian .

    High brightness high brush

    High brightness, unaffected by ambient light, no scanning lines for photography.

    SPECIFICATION

    Parameter P0.9 P1.25 P1.56
    LED Type COB1010 COB1010 COB1212
    Pixel Pitch 0.9mm 1.25mm 1.53mm
    Pixel Density

    1137778 dots/m²

    640000 dots/m² 422500 dots/m²
    Module Dimension(W×H×D) 150*168.75mm 150*168.75mm 150*168.75mm
    Module Resolution 160*180 dots 120*135dots 96*108 dots
    Module Weight 114.5g 114.5g 114.5g
    Cabinet Dimension(W×H×D) 600*337.5mm 600*337.5mm 600*337.5mm
    Cabinet Resolution 640*360 dots 480*270 dots 384*216dots
    Cabinet Weight 3.1kg 3.1 kg 3.1 kg
    Panel Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
    Refresh Rate 3840/7680Hz 3840/7680Hz 3840/7680Hz
    Brightness 800 cd/m² 800 cd/m² 800 cd/m²
    Gray Scale 16 Bit 16 Bit 16 Bit
    Color Temperature 6500~93000K 6500~93000K 6500~93000K
    Viewing Angle (H/V) 160°/160° 160°/160° 160°/160°
    Contrast Ratio 10000:1 10000:1 10000:1
    Scan Mode 1/60 scan 1/60 scan 1/54scan
    Cabinet Power Consumption (Max.) 95 W 90 W 85W
    Power Consumption (Avg.) 25-50 W² 23-48 W 20-45 W
    Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
    Operating Temperature -10°C to 40°C -10°C to 40°C -10°C to 40°C
    Operating Humidity 10% - 90% RH 10% - 90% RH 10% - 90% RH
    Storage Temperature -40°C to 60°C -40°C to 60°C -40°C to 60°C
    Storage Humidity 10% - 90% RH 10% - 90% RH 10% - 90% RH
    Maintenance Front Front Front
    LED Lifetime 100000 Hours 100000 Hours 100000 Hours

    APPLICATION

    CERTIFICATION

    FCC
    LVD
    CE
    PSE
    ROHS
    CCC
