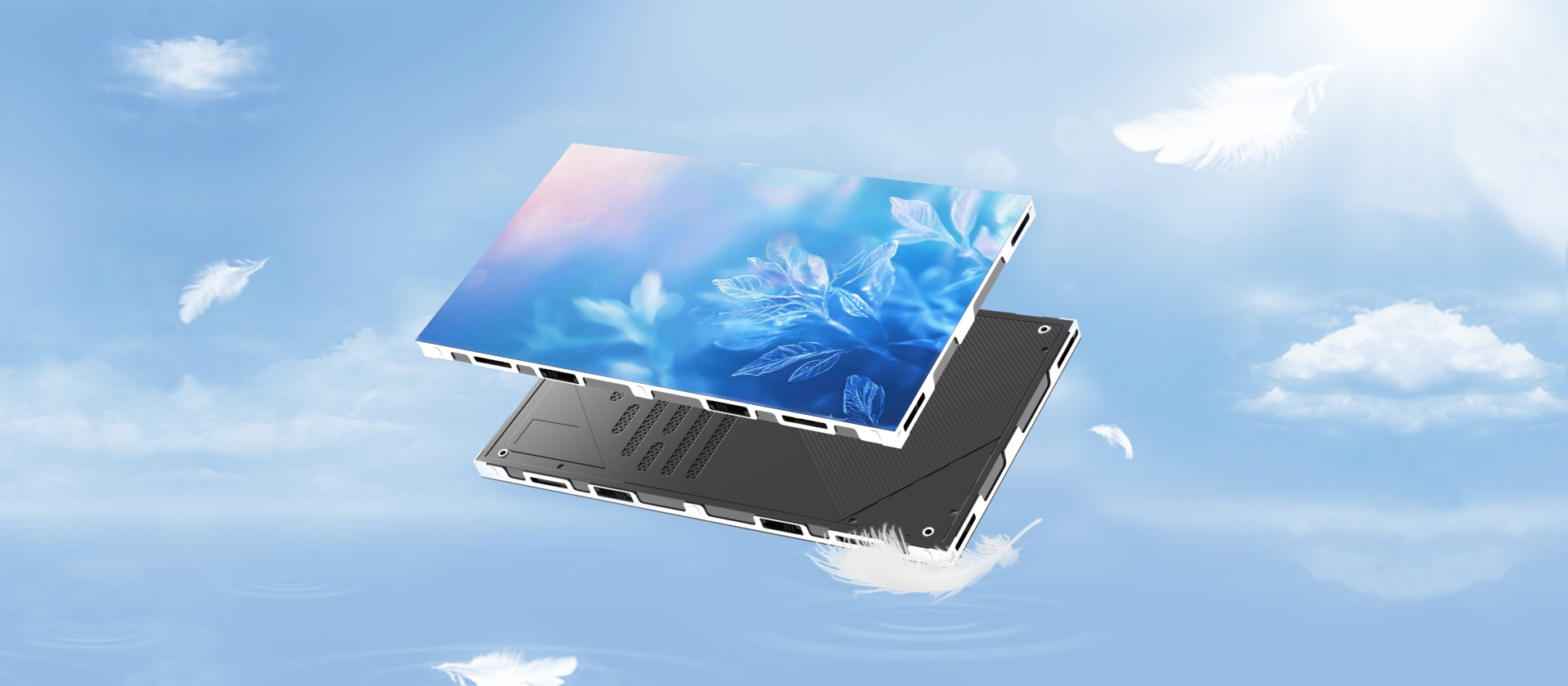

Indoor 16:9 LED Display
Indoor 16:9 LED Display
Indoor 16:9 LED Display

Indoor 16:9 LED Display

  • - 16:9 perfect golden ratio
  • - Ultra-light and ultra-thin, with extraordinary picture quality
  • - Professional high-definition picture quality, ultra-high contrast
  • - 170° Super wide viewing
  • - Creative splicing, flexible display
  • - Dual backup, more stable
  • - Seamless splicing, ultra-high flatness
Tag: Indoor LED Display    HD LED Screen    Small-pitch LED display    Conference LED display
Inquiry

16:9 perfect golden ratio

The 16:9 aspect ratio conforms to ergonomic principles, can reduce visual fatigue, and can balance picture clarity and visual impact

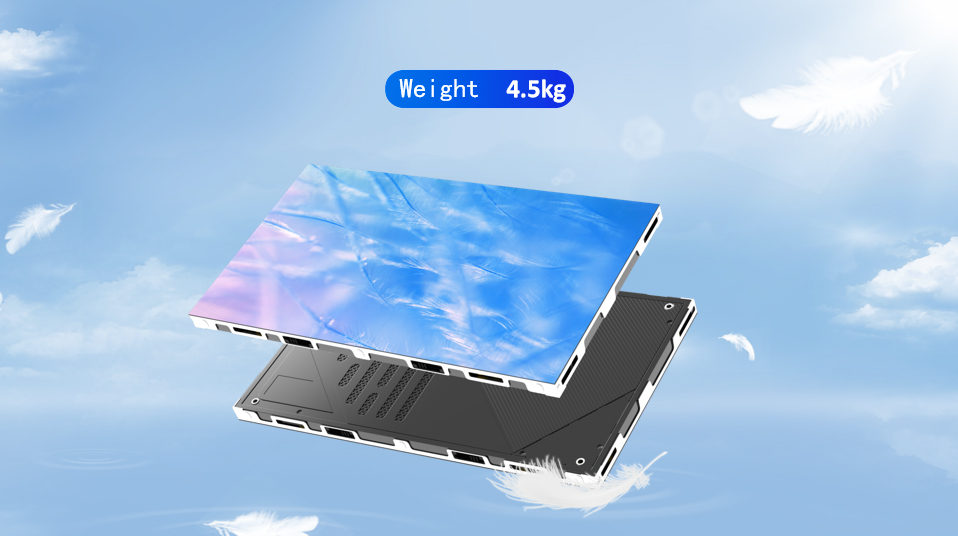

Ultra-light and ultra-thin, with extraordinary picture quality

Cabinet weight 4.5kg, thickness is only 27.5mm, small and portable

Professional high-definition picture quality, ultra-high contrast

Professional color management techniques, rich color layers and more natural color transitions

170° Super wide viewing

Perfect presentation of images from any angle

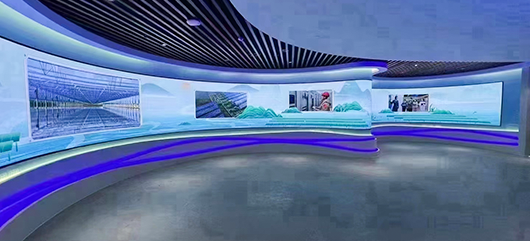

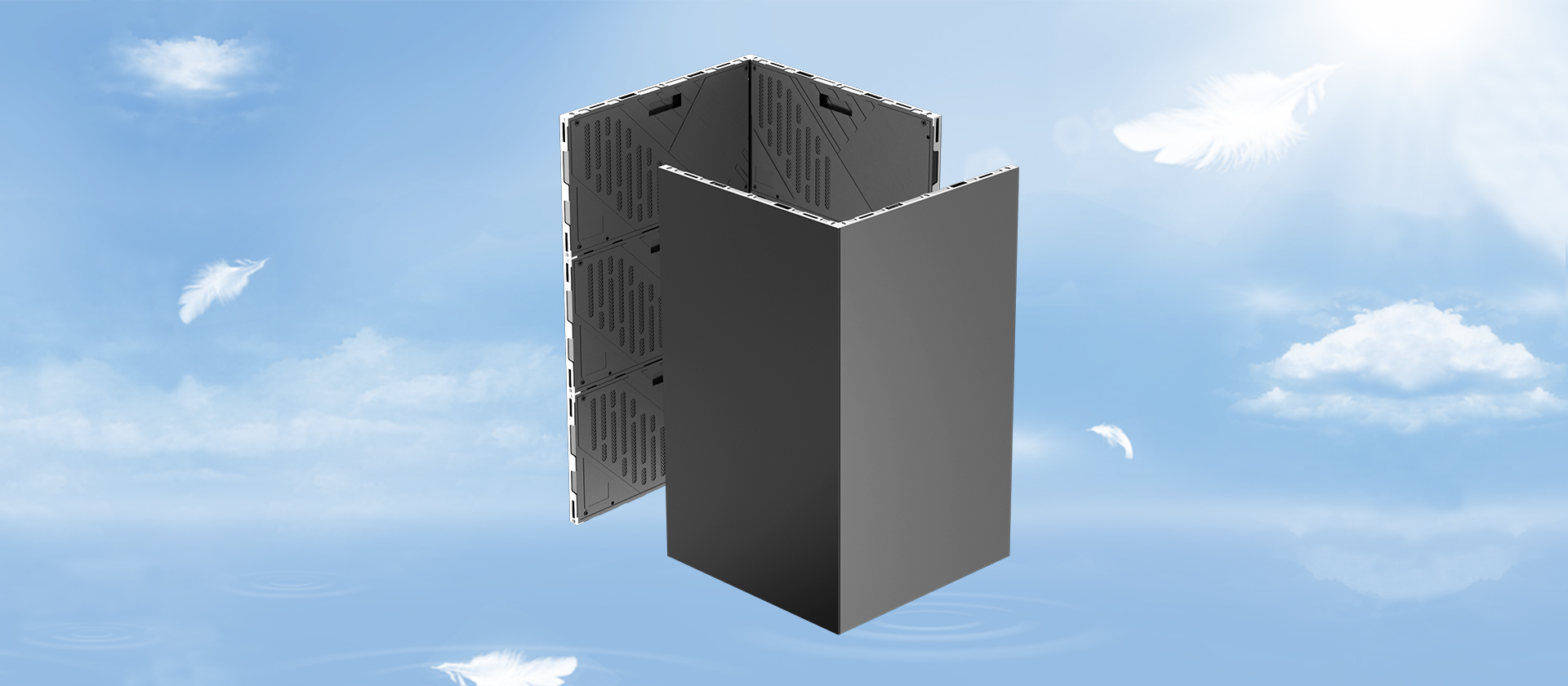

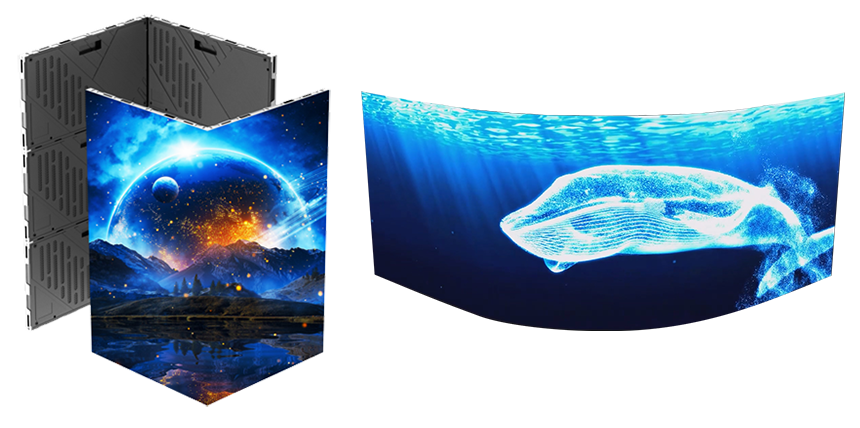

Creative splicing, flexible display

Supports a variety of installation methods, can realize right angle splicing, structure fine-tuning technology, to ensure the flatness of product splicing

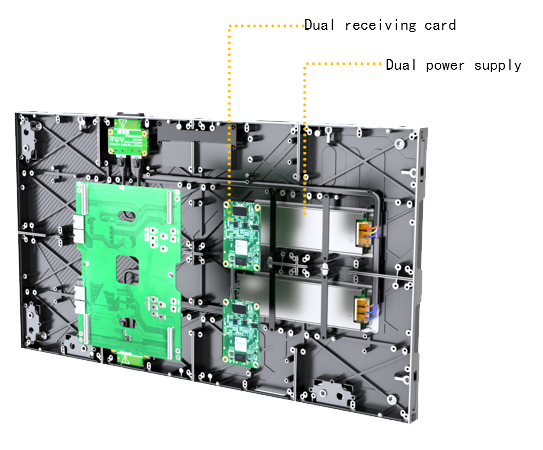

Dual backup, more stable

Configurable dual backup version to ensure uninterrupted power supply. Signal not lost, more stable and reliable

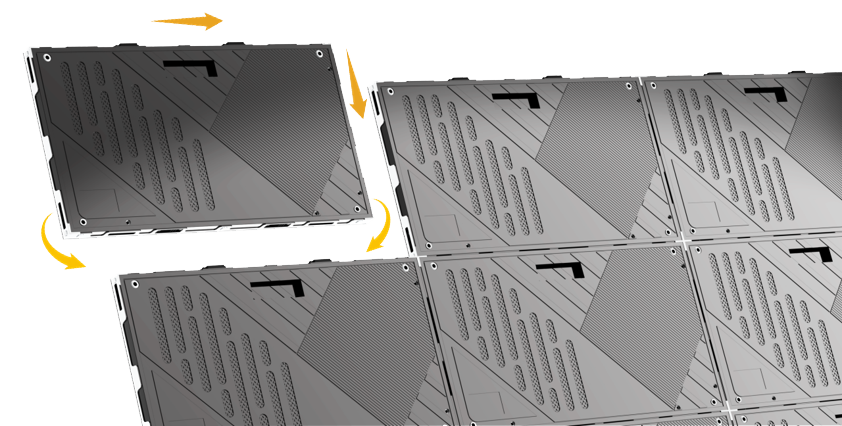

Seamless splicing, ultra-high flatness

Die-casting Alumium Cabinet sctructure with CNC high-precision processing (Flatness of Cabinet≤0.1mm) Screwless design for faster and more secure installation Super silent fanless design

SPECIFICATION

Parameter P1.25 P1.56 P1.87 P2.5
LED Type SMD1010 SMD1010/1212 SMD1010/1515 SMD1515
Pixel Pitch 1.25mm 1.56mm 1.87mm 2.5mm
Pixel Density 640000 dots/m² 409600 dots/m² 284444 dots/m² 160000 dots/m²
Module Dimension(W×H×D) 300*168.75*20mm 300*168.75*20mm 300*168.75*20mm 300*168.75*20mm
Module Resolution 240*135 dots 192*108 dots 160*90 dots 160*90 dots
Module Weight 0.86 kg 0.86 kg 0.86 kg 0.86 kg

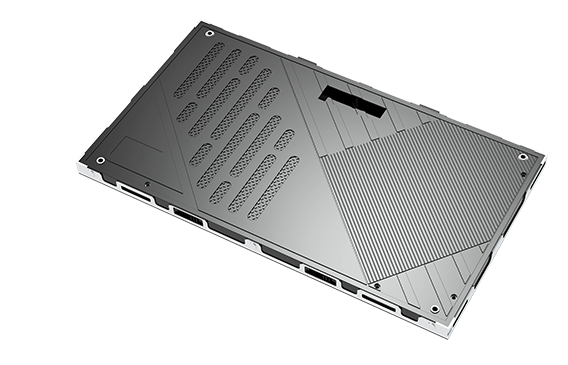

Cabinet Dimension(W×H×D) 600*337.5*27.5mm 600*337.5*27.5mm 600*337.5*27.5mm 600*337.5*27.5mm
Cabinet Resolution 480*270 dots 384*216 dots 320*180 dots 240*135 dots
Cabinet Weight 4.5 kg 4.5 kg 4.5 kg 4.5 kg
Panel Material Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum Die-cast Aluminum
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Brightness ≥600 cd/m² ≥600 cd/m² ≥600 cd/m² ≥600 cd/m²
Gray Scale 16 Bit 16 Bit 16 Bit 16 Bit
Color Temperature 5000~12000K 5000~12000K 5000~12000K 5000~12000K
Viewing Angle (H/V) 170°/170° 170°/170° 170°/170° 170°/170°
Optimum Viewing Distance ≥1.9 m ≥2.3 m ≥2.8 m ≥3.8 m
Contrast Ratio 10000:1 10000:1 10000:1 10000:1
Scan Mode 1/45 scan 1/48 scan 1/45 scan 1/30 scan
IP Rating IP31 IP31 IP31 IP31
Power Consumption (Max.) 350 W/m² 350 W/m² 350 W/m² 350 W/m²
Power Consumption (Avg.) 100 W/m² 100 W/m² 100 W/m² 100 W/m²
Input Voltage AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz) AC100~240V (50/60Hz)
Operating Temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Operating Humidity 10% - 85% RH 10% - 85% RH 10% - 85% RH 10% - 85% RH
Storage Temperature -20°C to 60°C -20°C to 60°C -20°C to 60°C -20°C to 60°C
Storage Humidity 10% - 85% RH 10% - 85% RH 10% - 85% RH 10% - 85% RH
Maintenance Front Front Front Front
LED Lifetime ≥100000 Hours ≥100000 Hours ≥100000 Hours ≥100000 Hours

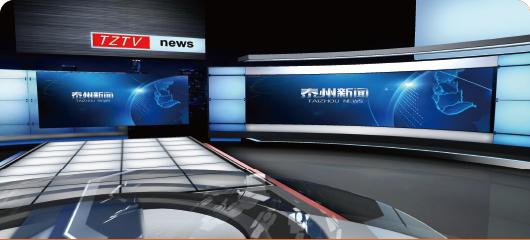

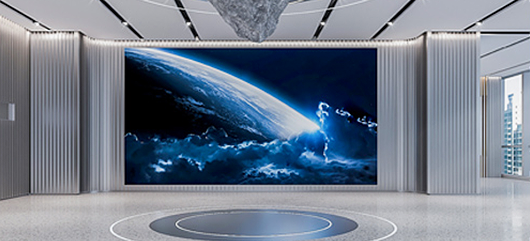

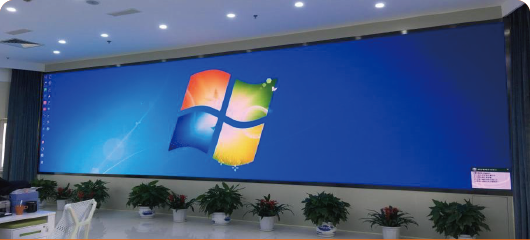

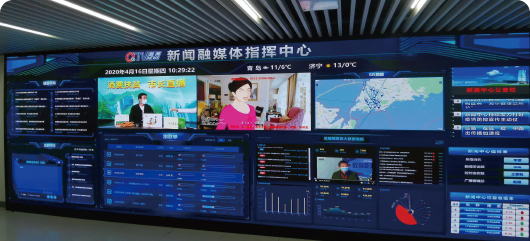

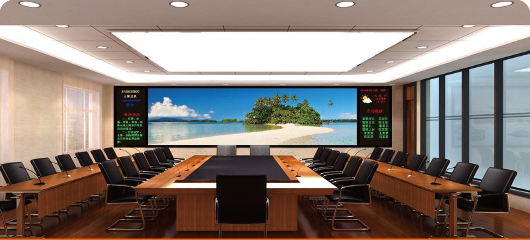

APPLICATION

CERTIFICATION

FCC
LVD
CE
PSE
ROHS
CCC
